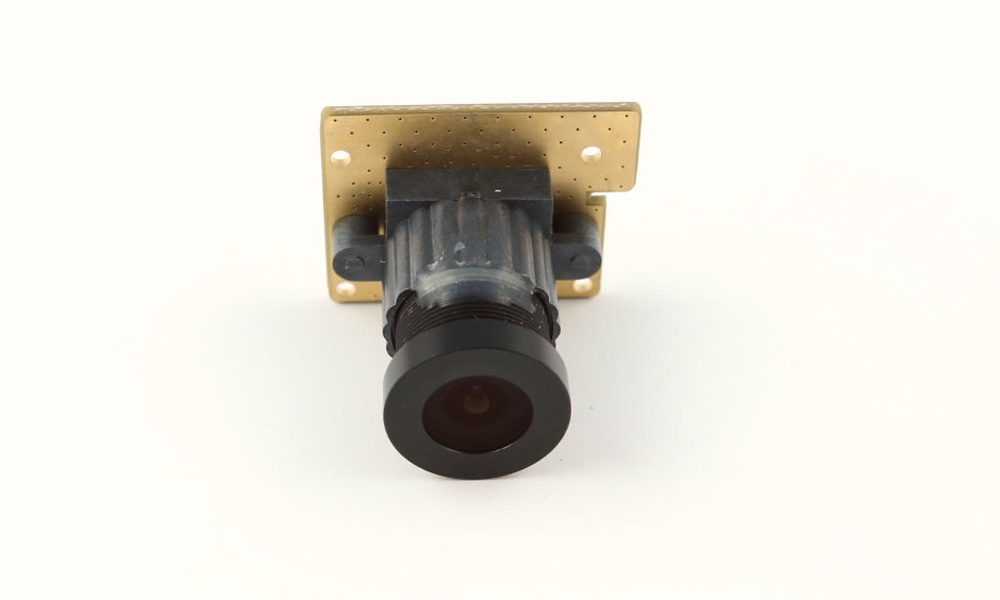

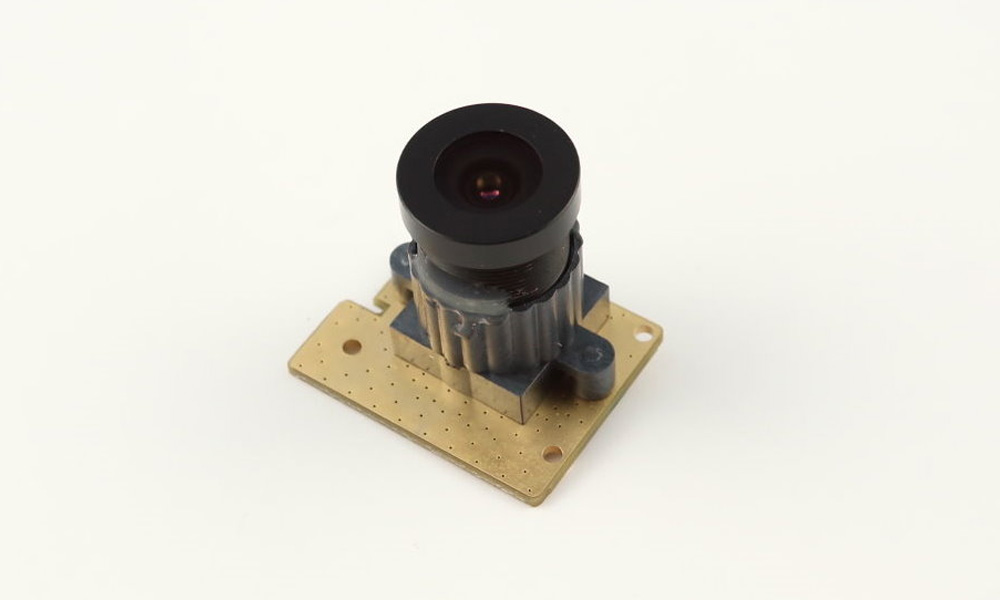

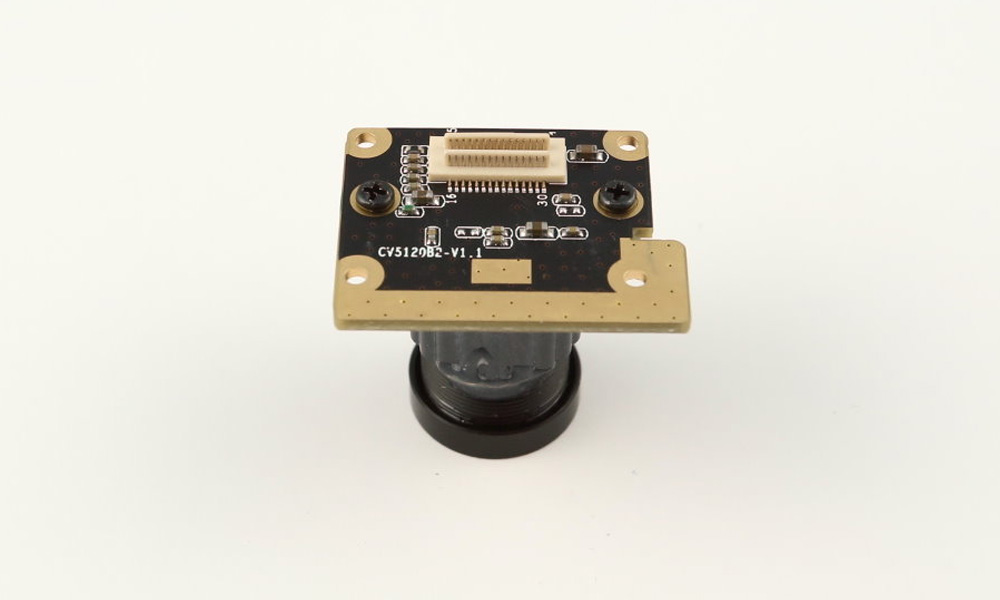

CV7720B2-T4BP 1080P Serial Camera SCCB Interface

1080P Serial Camera SCCB Interface

---

Product Features

---

• Optical format : 1/2.7 inch
•   Unit Pixel size : 3.0um x 3.0um
•   Effective resolution: 1920( H) x 1080 (V)
•   Supported resolutions : 1080p, 720p VGA
•   Output formats (8-10bit) : raw RGB data
•   Max. capture frame rate : 30fps @1080p
•   Input clock frequency : 6~27MHz
•   ADC accuracy : 10-bit
•   Dyanmic range : >60dB
•   Continuous and single frame capture mode
•   Module Size : 25.3mm x 20.2mm x 22.3mm / BTB 30pin
•   FOV : 127 diagonal

  Download Spec (PDF)
