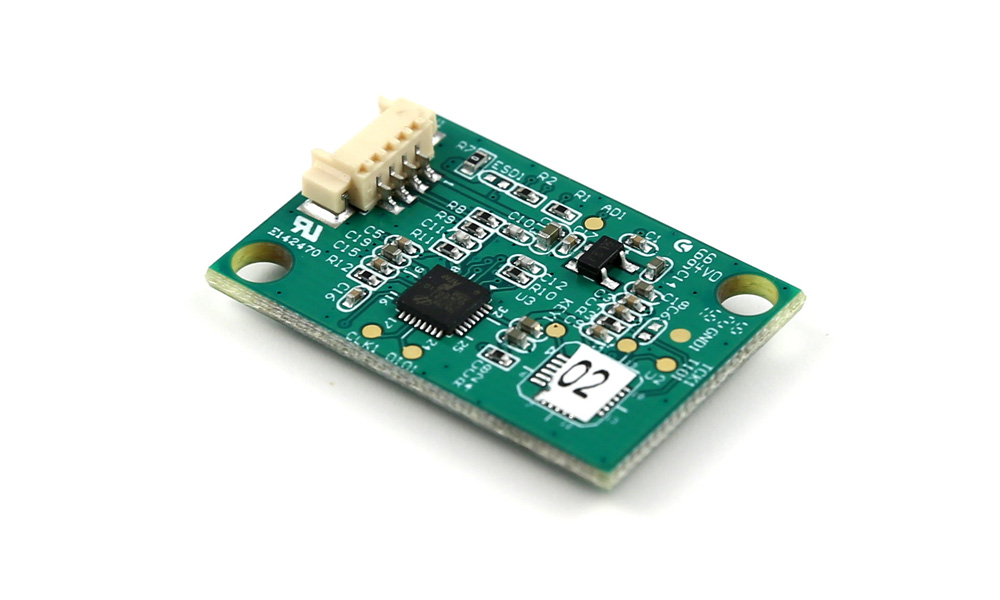

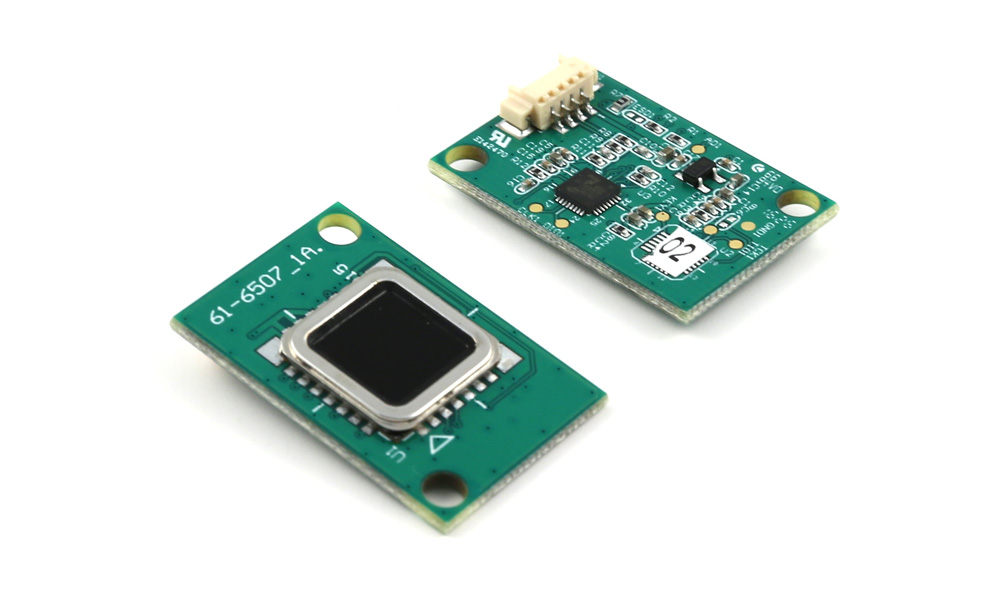

FHU3020-1 USB I/F Hybrid FingerPrint
The hybrid sensor is 1.2mm thick featured with an effective capture area of 8mm × 8mm and an ultra-high resolution of 1000dpi (320 × 320 pixels). It can recognize refined fingerprint details such as sweat pores and can detect dry/moist, fine/rough and fake fingerprints. In addition, the hybrid sensor matching with either 6H of coating or 8H of glass can withstand more than one million abrasion resistances.
The devices have passed 15KV ESD test and high ambient light test (high power halogen lamp, >1,000,000 lux). The hybrid sensor has operating voltage of 3.3V, operating current of 30mA, standby current of 5μA and operating temperature range of -20°C ~ +60°C.
Product Features
Download Spec (PDF)
